In this codelab, you'll gain a foundational understanding of the Solace Agent Mesh. You'll explore the architecture, key components, and benefits of the Solace Agent Mesh, learning how it enables scalable, event-driven communication between AI agents and services. The introduction covers the evolution of event-driven architectures and highlights real-world use cases where agent mesh technology can be applied.

By the end of this codelab, you'll be equipped to get started with Solace Agent Mesh, including learning the building blocks, installation prerequisites, running built-in agents, and connecting different types of agents. You'll understand how to develop custom agents, leverage plugins and tools, and build multi-agent systems that harness the power of event mesh and standardized protocols for robust, collaborative AI solutions.

SAM Arch

Problem statement

Building effective agentic systems presents a complex challenge that extends far beyond simply deploying AI models. AI Agents are siloed systems that operate in isolation, and are unable to effectively communicate or share capabilities across organizational boundaries. By definition and design, Agents are inherently domain-specific, designed to excel in narrow use cases but struggling to collaborate or leverage expertise from other specialized agents, creating fragmented AI ecosystems that fail to realize their collective potential.

Fragmented

To make intelligent decisions and respond to dynamic conditions, agentic systems must rely on event-driven actions that flow into the organization. While solving the core AI challenge represents only 20% of the effort, the remaining 80% involves the much more complex task of connecting AI models to the disparate data sources, legacy systems, APIs, and organizational knowledge that exist across isolated silos—making data accessibility and integration the true bottleneck in delivering practical AI value

What is Solace Agent Mesh?

Solace Agent Mesh is a comprehensive open-source framework that empowers developers to build sophisticated, distributed AI systems. On a high level, Agent mesh provides developers with the following:

  1. Core Communication & Protocol
    • Standardized A2A (Agent-to-Agent) Protocol: A unified communication standard that enables seamless interaction between AI agents, regardless of their underlying implementation or deployment location
    • Event-Driven Architecture: Built on the Solace Event Broker for asynchronous, scalable, and resilient agent communication
    • Topic-Based Routing: Intelligent message routing that enables agents to discover and communicate with each other dynamically
  2. Data Integration & Connectivity
    • Real-World Data Source Integration: Access to real-time data and integrations from the event mesh allows AI agents access to different business events
    • Universal Gateway Support: Multiple interface types including REST APIs, WebSockets, webhooks, and direct event mesh integration
    • Streaming Data Processing: Real-time event processing capabilities for handling live data streams and IoT sensor feeds
    • Multi-Protocol Support: Connect to systems using HTTP, MQTT, AMQP, WebSocket, and custom protocols
  3. Workflow Orchestration & Management
    • Complex Workflow Orchestration: Coordinate sophisticated multi-agent workflows with dependency management and parallel execution
    • Task Decomposition: Automatically break down complex requests into manageable subtasks for specialized agents
    • Result Aggregation: Intelligent collection and synthesis of results from multiple agents into cohesive responses
  4. Extensibility & Plugin Architecture
    • Modular Plugin System: Easily extend functionality through a rich ecosystem of community and commercial plugins
    • Custom Agent Development: Comprehensive tools and templates for building domain-specific agents with specialized capabilities
    • Gateway Plugins: Create custom external interfaces for unique integration requirements with the Gateway Development Kit (GDK)
    • Service Provider Plugins: Standardized abstractions for integrating with backend systems and data sources
    • Tool Framework: Extensible tool system that allows agents to perform actions and interact with external services
  5. AI Model & Provider Support
    • Multi-Model Compatibility: Support for all major AI providers including OpenAI, Anthropic, Google, Azure OpenAI, and local models
    • Model Abstraction: Switch between different AI models without changing agent logic
    • Custom Model Integration: Support for proprietary and fine-tuned models through flexible provider interfaces
  6. Development Tools & Framework
    • Comprehensive CLI: Full-featured command-line interface for project creation, management, and deployment
    • Configuration Management: YAML-based configuration system with environment variable support and validation
  7. Security & Enterprise Features
    • Multi-Authentication Support: JWT, OAuth, API keys, and custom authentication mechanisms
    • Role-Based Access Control: Fine-grained permissions and authorization for agents and resources
    • Identity Service Integration: Integration with enterprise identity providers and HR systems
  8. Scalability & Performance
    • Horizontal Scaling: Easily scale individual agents or entire agent meshes based on demand
    • Resource Management: Intelligent resource allocation and optimization for optimal performance
    • Async Processing: Non-blocking, asynchronous operations for maximum throughput
    • Shock Absorbing: Built on top of an advanced message broker, Solace Event Broker, that leverages queues for guaranteed messaging
  9. Deployment & Operations
    • Multi-Environment Support: Seamless deployment across development, staging, and production environments
    • Container-Ready: Docker and Kubernetes support for modern containerized deployments
    • Cloud-Native: Native support for AWS, Azure, GCP, and hybrid cloud deployments

This codelab will help you understand how to leverage Solace Agent Mesh for your own AI applications, whether you're an AI enthusiast experimenting with new models or an enterprise developer building production systems.

Resources

For more information and a deep dive on the Solace Agent Mesh, you can check out this video series

Solace Agent Mesh represents a sophisticated enterprise-grade platform that orchestrates AI agents. At its core, the Orchestrator serves as the intelligent brain that decomposes complex tasks and routes them to specialized Agents built using the Agent Development Kit (ADK), while Gateways created with the Gateway Development Kit (GDK) provide secure multi-protocol entry points. The platform's foundation rests on the Solace Broker for enterprise messaging, complemented by essential Services including LLM integration, embeddings management, artifact storage, and conversation history tracking. This unified architecture creates a robust, enterprise-ready platform for deploying and managing AI agent ecosystems at scale.

SAM Component

Solace Event Broker / Event Mesh

The central messaging backbone that provides intelligent topic-based routing, fault-tolerant delivery, and horizontal scaling for all Agent-to-Agent (A2A) protocol communications across the entire system.

The Solace Event Broker serves as the central nervous system of the entire Solace Agent Mesh framework, providing:

Gateways: Entry and Exit Points

External interface bridges that translate diverse protocols (HTTP, WebSocket, Slack RTM, Solace Event Mesh...etc) into standardized A2A messages while handling authentication, authorization, and session management for outside systems.

Important functionalities of gateways include:

Orchestrator - The Planner

A specialized agent that coordinates complex workflows. The main functionality of the orchestrator boils down to:

Agents - Goal Setters

Specialized AI processing units built on Agent Development Kit that provide domain-specific intelligence, self-register for dynamic discovery, and access comprehensive tool ecosystems for complex task execution.

Solace AI Connector

The universal runtime environment that hosts and manages the complete lifecycle of all system components while bridging Google ADK capabilities with Solace event infrastructure through YAML-driven configuration. Main capabilities include:

Backend Services & Tools

The foundational infrastructure layer providing multi-provider LLM access, extensible integrations for custom tools and APIs, persistent data storage, and cloud-native artifact management services. Solace Agent Mesh is built on a modular foundation with the following tools:

Solace Agent Mesh is versatile and can be applied to various domains. Here are some examples of where Agent Mesh could be very helpful

Intelligent Enterprise Automation

Agent orchestration through Solace Agent mesh excels in customer service systems that intelligently route inquiries to specialized agents based on intent and context, dramatically improving response times and customer satisfaction. The event-driven architecture allows service representatives to handle complex queries by delegating specialized aspects to purpose-built AI agents while maintaining conversation continuity. Organizations deploy these systems to provide consistent, 24/7 customer support that combines human expertise with AI capabilities, reducing resolution times and improving service quality while scaling efficiently to handle peak demand periods without degradation in performance.

Event-Triggered Analysis

The event-driven foundation of Solace Agent Mesh makes it particularly effective for systems that automatically respond to system events with appropriate data analysis and reporting. These implementations listen for significant events across enterprise systems and trigger specialized analysis workflows based on event type, context, and criticality. Organizations deploy these capabilities for automated incident response, where security events trigger investigation workflows involving multiple specialized agents, or for business operations monitoring, where unusual patterns in operational metrics automatically initiate root cause analysis across multiple connected systems without requiring manual intervention.

Data Processing Pipelines

The mesh architecture is effective for implementing sophisticated data processing pipelines where specialized agents transform, analyze, and enrich information from multiple sources. In these implementations, data flows seamlessly between agents that each contribute their unique processing capabilities—one agent might extract structured data from documents, another might classify content, while others translate or summarize findings. The event-driven backbone ensures resilient processing even when individual components experience delays or failures, making it ideal for enterprise environments processing mission-critical data that requires multiple specialized AI capabilities applied in sequence or parallel.

Document Intelligence Systems

Document processing systems that extract text, summarize content, translate materials, and categorize information—with each specialized function handled by purpose-built agents working in orchestration is a big use-case for Solace Agent Mesh. These systems tackle complex document workflows where multiple AI capabilities must be coordinated, such as legal contract analysis, regulatory compliance review, or technical documentation management. The modular design allows organizations to easily enhance specific capabilities (like adding specialized extraction for particular document types) without disrupting the overall workflow, creating increasingly sophisticated document intelligence that evolves with organizational needs.

Human-AI Collaboration

Solace Agent Mesh provides a robust foundation for implementing approval workflows where agents perform complex tasks while keeping humans in the loop for approvals, clarifications, or expert guidance via web interfaces, Slack, or other communication channels. These implementations balance automation efficiency with human oversight, ideal for scenarios requiring judgment calls or regulatory compliance. Organizations deploy these systems for contract approval workflows, content moderation processes, and complex decision support systems where AI provides recommendations but humans make final determinations, ensuring responsible AI deployment while still gaining significant efficiency improvements.

Decision Support Systems

Organizations leverage the mesh to provide AI-powered decision support while maintaining human oversight for critical business determinations. These systems aggregate information from multiple sources, analyze options using specialized agents with different expertise domains, and present synthesized recommendations to human decision-makers. The event-driven design facilitates asynchronous information gathering and analysis that mirrors how human teams collaborate on complex decisions. Businesses implement these systems for investment analysis, strategic planning, risk assessment, and other scenarios where multiple factors must be considered from different perspectives to reach optimal conclusions.

Multi-Agent Research Platform

Researchers and AI development teams utilize Solace Agent Mesh as a production-ready platform for exploring agent collaboration patterns, delegation strategies, and distributed AI problem-solving approaches. The system's comprehensive observability allows teams to analyze interaction patterns between agents, measure performance of different collaboration strategies, and identify bottlenecks or failure modes in complex multi-agent systems. Academic and commercial research groups implement these environments to develop new frameworks for agent cooperation, test emergent behaviors in multi-agent systems, and evaluate different approaches to task decomposition and delegation between specialized AI capabilities.

Natural Language Data Intelligence

Data analysis teams implement agents that query databases, transform results, and generate visualizations based on natural language requests, making complex data accessible to non-technical users throughout organizations. These implementations translate ambiguous human queries into precise database operations, apply appropriate transformations to the retrieved data, and automatically select visualization approaches that best communicate the insights. Organizations deploy these systems to democratize data access, allowing business users to interact with complex data warehouses through conversational interfaces while maintaining governance controls through the mesh's robust permission system and generating consistent, properly formatted outputs regardless of query complexity.

Enterprise Integration

Solace Agent Mesh demonstrates significant value in providing AI-powered integration between enterprise systems like Jira, Confluence, and other corporate knowledge bases and workflow tools. These implementations connect previously siloed information systems through intelligent agents that understand cross-system relationships, can translate between different data models, and maintain context across system boundaries. Organizations implement these integrations to reduce manual data transfer between systems, ensure consistency of information across platforms, and provide unified natural language interfaces to multiple backend systems, significantly improving knowledge worker productivity and information accuracy across the enterprise.

Prerequisites

Installation

Install Python 3.11+

To install a specific version of python, we would recommend using brew

brew install python@3.12

Create and activate a Python virtual environment

MacOS/Linux

mkdir solace-agent-mesh-demo
cd solace-agent-mesh-demo
python3 -m venv venv
source venv/bin/activate

Windows

venv/Scripts/activate

After activating the virtual environment you can now simply just use python which will use whatever python version used to initialize the virtual environment. To confirm, you can execute the following after activating your virtual environment

python --version

Install the Solace Agent Mesh Community Edition

pip install solace-agent-mesh

[Optional] Solace Broker

You have two options to run and connect to a Solace Broker

  1. Software: using a docker image to run it locally
  2. Cloud: using self served cloud instance

Follow the steps defined in the getting started with Solace page

Initialize Solace Agent Mesh

In the newly created directory, initialize a new instance of an agent mesh project

sam init --gui

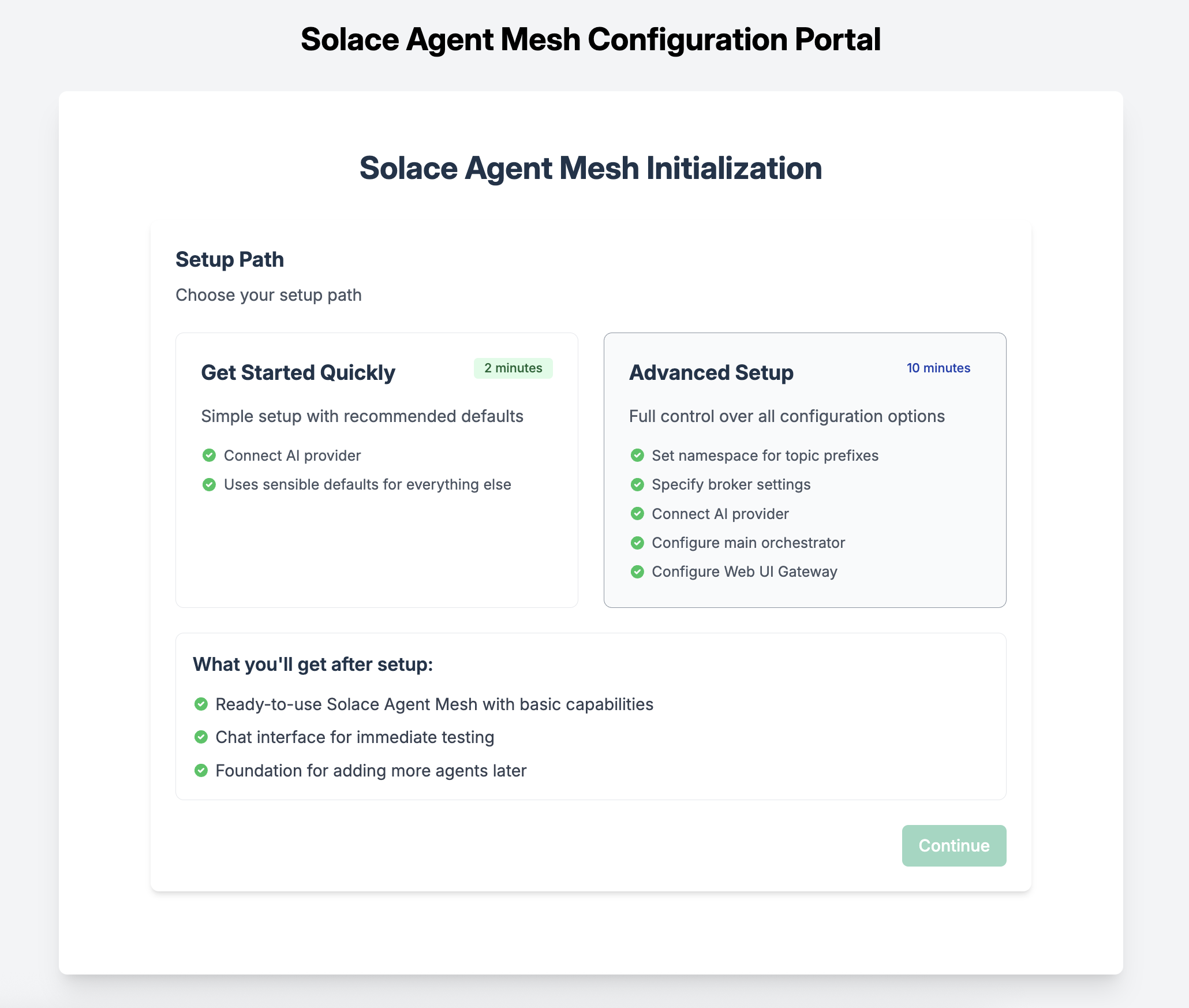

SAM Init

From here, choose "Advanced Setup" to spin up an instance of the Agent Mesh that uses the Solace Broker as the communication backbone.

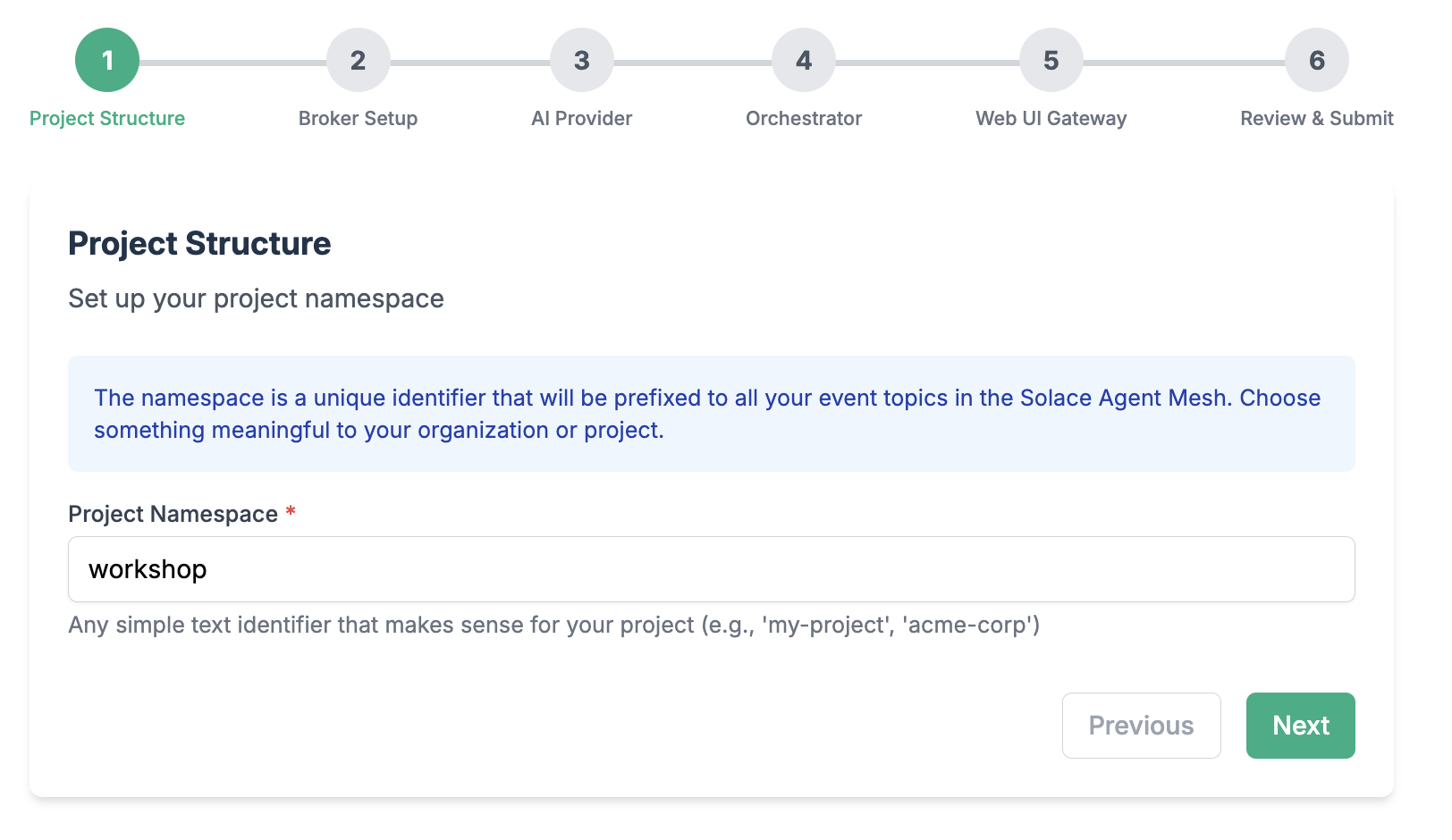

Choose a namespace for your project

Namespace

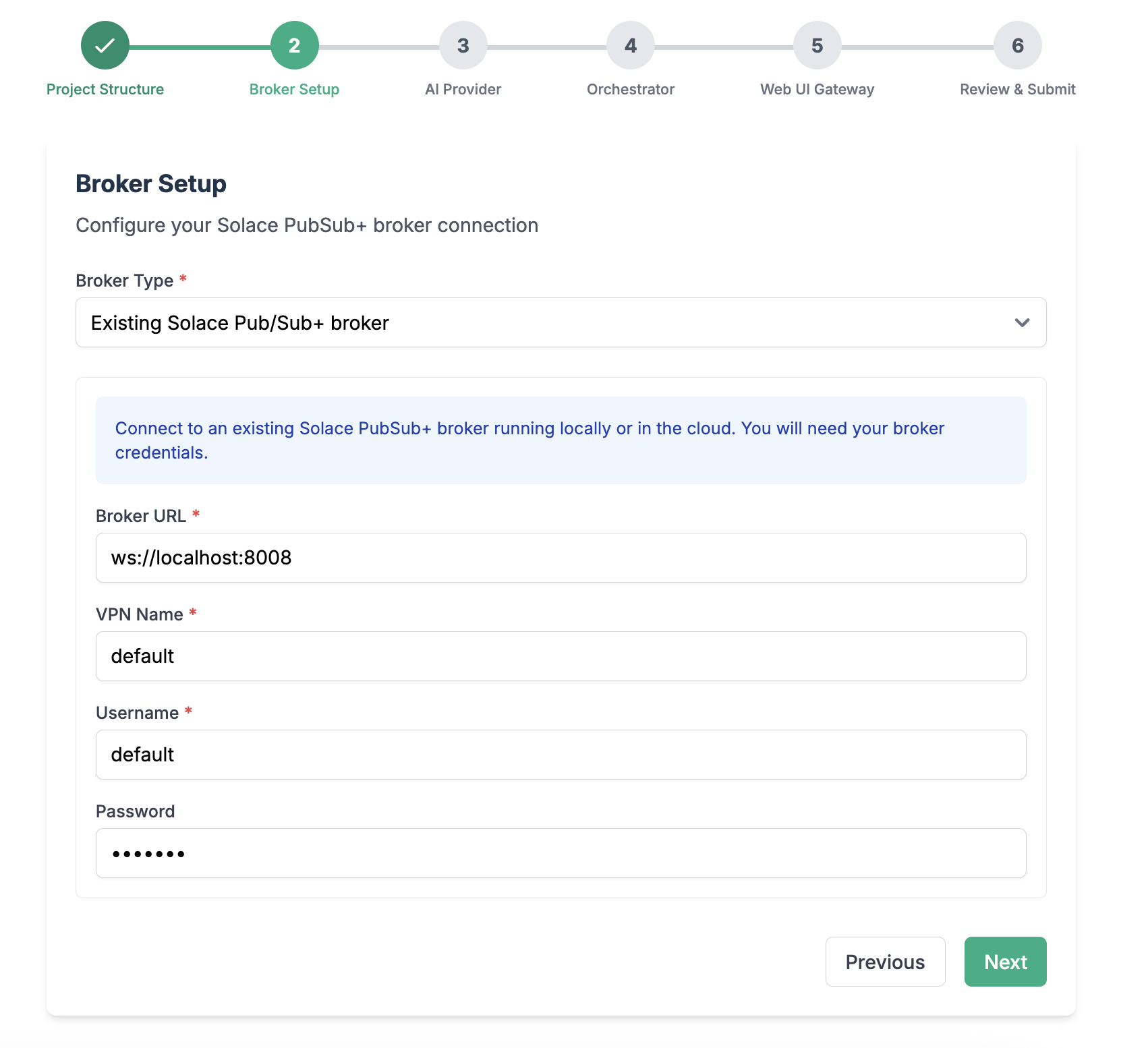

Configure connection to the Solace Broker

Broker

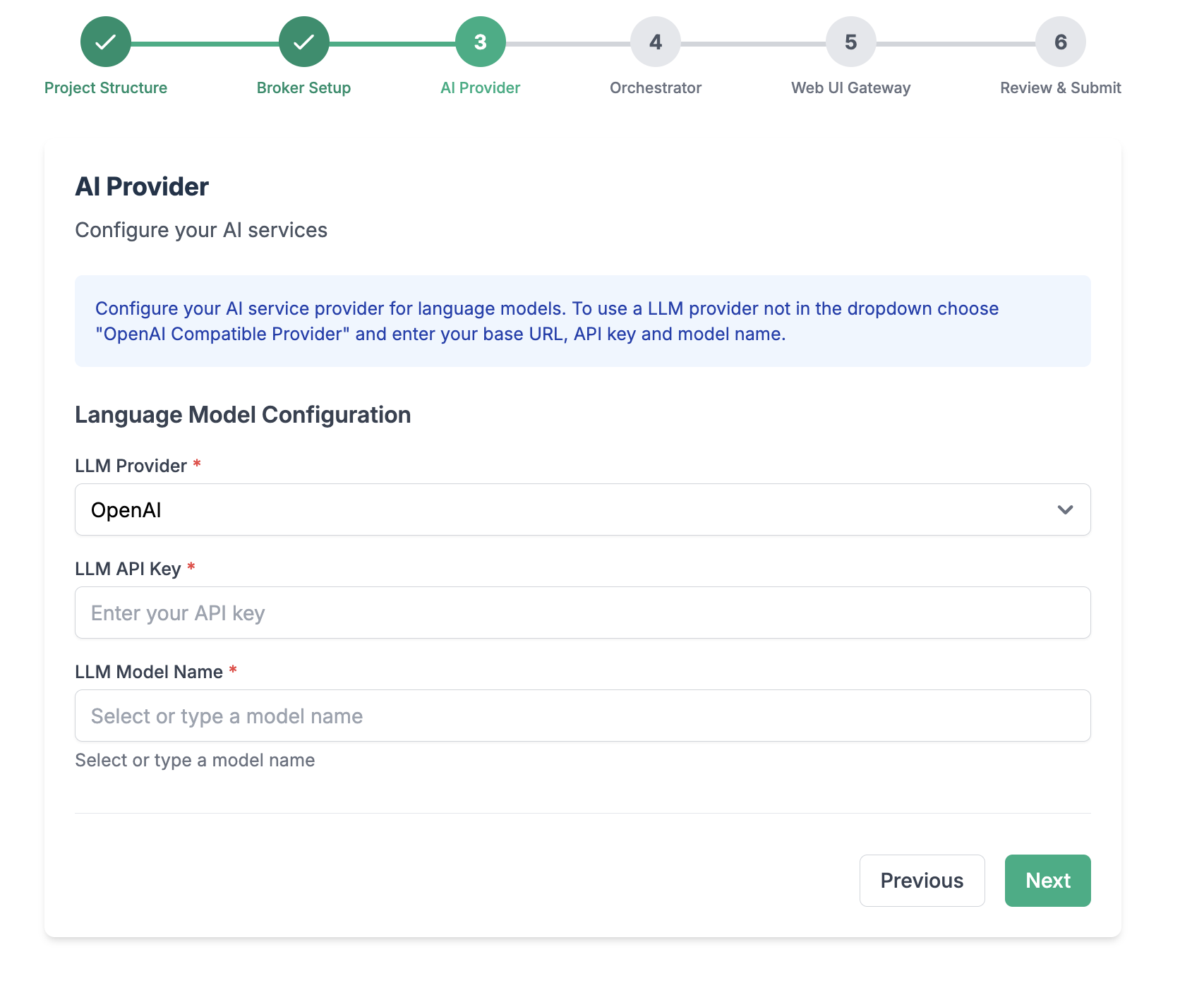

Configure your LLM endpoint, API Key, and Model name

LLM Endpoint

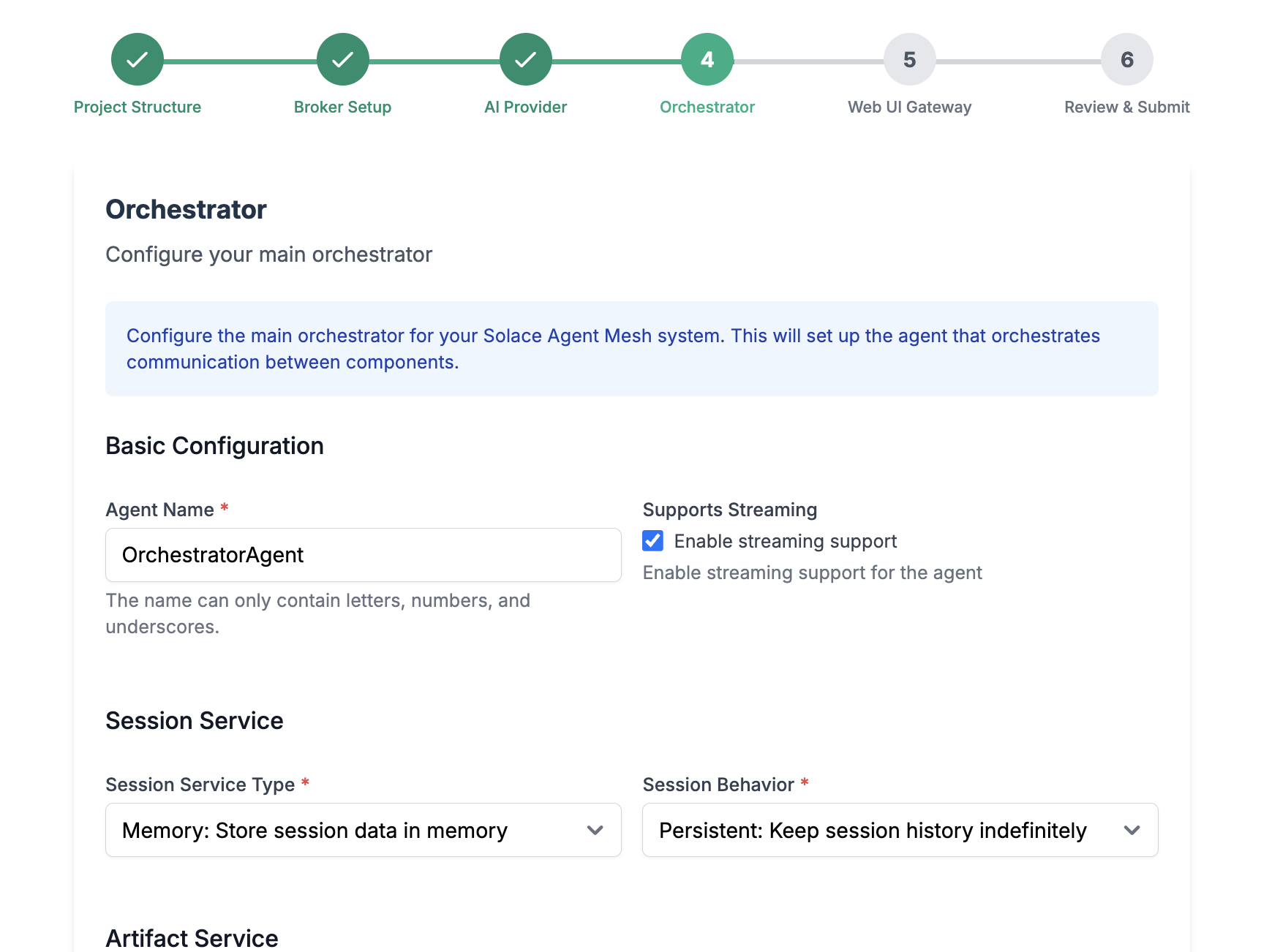

Configure your main orchestrator

orchestrator

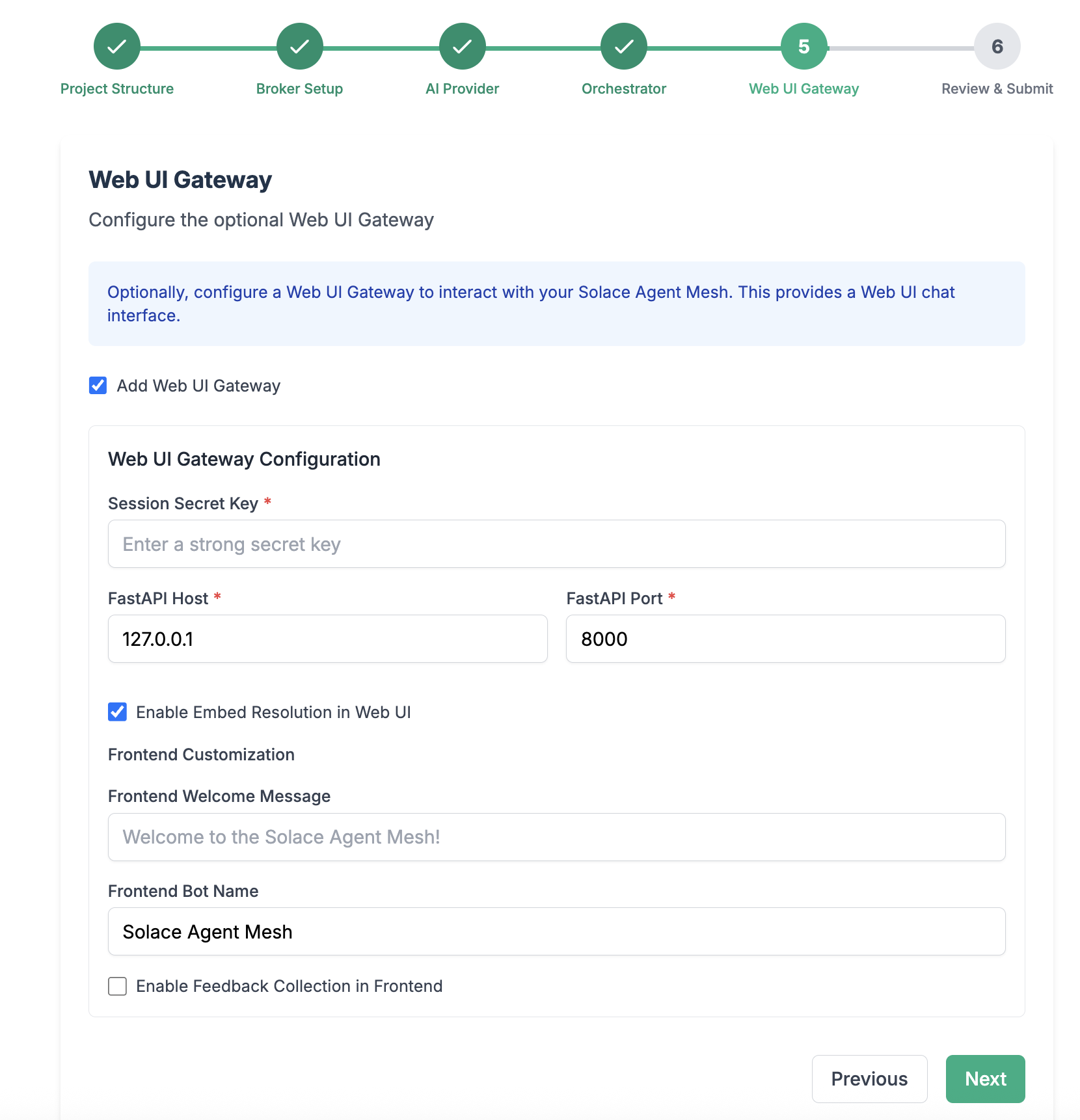

Configure the WebUI Gateway gateway

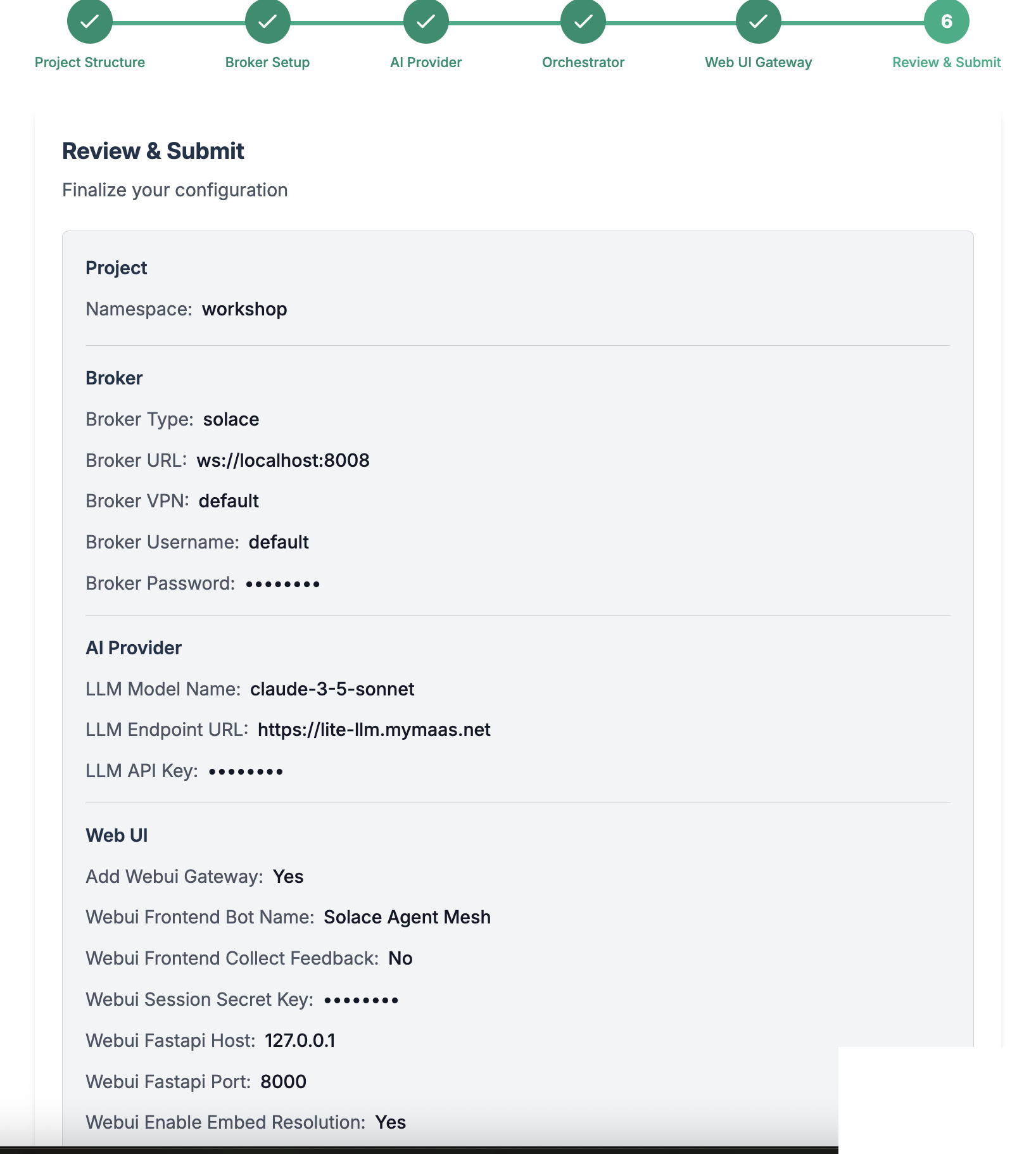

Review and Initialize the final configuration

SAM final

🎉 You have now successfully configured your Solace Agent Mesh environment! Now go back to terminal and continue with the next steps to run the Agent Mesh

After initializing your Solace Agent Mesh instance, you will find out the following files and directories has been created in your project folder

.
├── .env
├── .sam
├── configs
│   ├── agents
│   │   └── main_orchestrator.yaml
│   ├── gateways
│   │   └── webui.yaml
│   ├── logging_config.ini
│   └── shared_config.yaml
├── requirements.txt
└── src
    └── __init__.py

Here is a quick explanation on what this folder structure reflects:

Key Configuration Files

main_orchestrator.yaml

This file configures the main orchestrator agent, which manages tasks and coordinates workflows between agents.

webui.yaml

This file configures the web user interface gateway, which provides a browser-based interface for interacting with the agent mesh.

Configuration Management

Running the Solace Agent Mesh

Execute the following command to run Solace Agent Mesh

sam run

Access the WebUI Gateway through http://127.0.0.1:8000/

SAM Intro

🚀 Voilà! You are up and running with the Solace Agent Mesh!

Now run the following prompt in the chat window

What are your capabilities?

and click the "Agent Workflow" icon

flow

Explore the command flow simpleFlow

For the remaining of any prompts you execute to Solace Agent Mesh, you can always click this Agent Workflow icon to get a better understanding on what is happening

As mentioned earlier, Agents are specialized processing units built around ADK. They provide domain-specific knowledge and capabilities and can operate independently and be deployed separately.

In Solace Agent Mesh, Agents are configuration driven vial YAML files and there are multiple ways to develop an agent:

  1. Using built-in templates,
  2. Using the sam add agent cli command

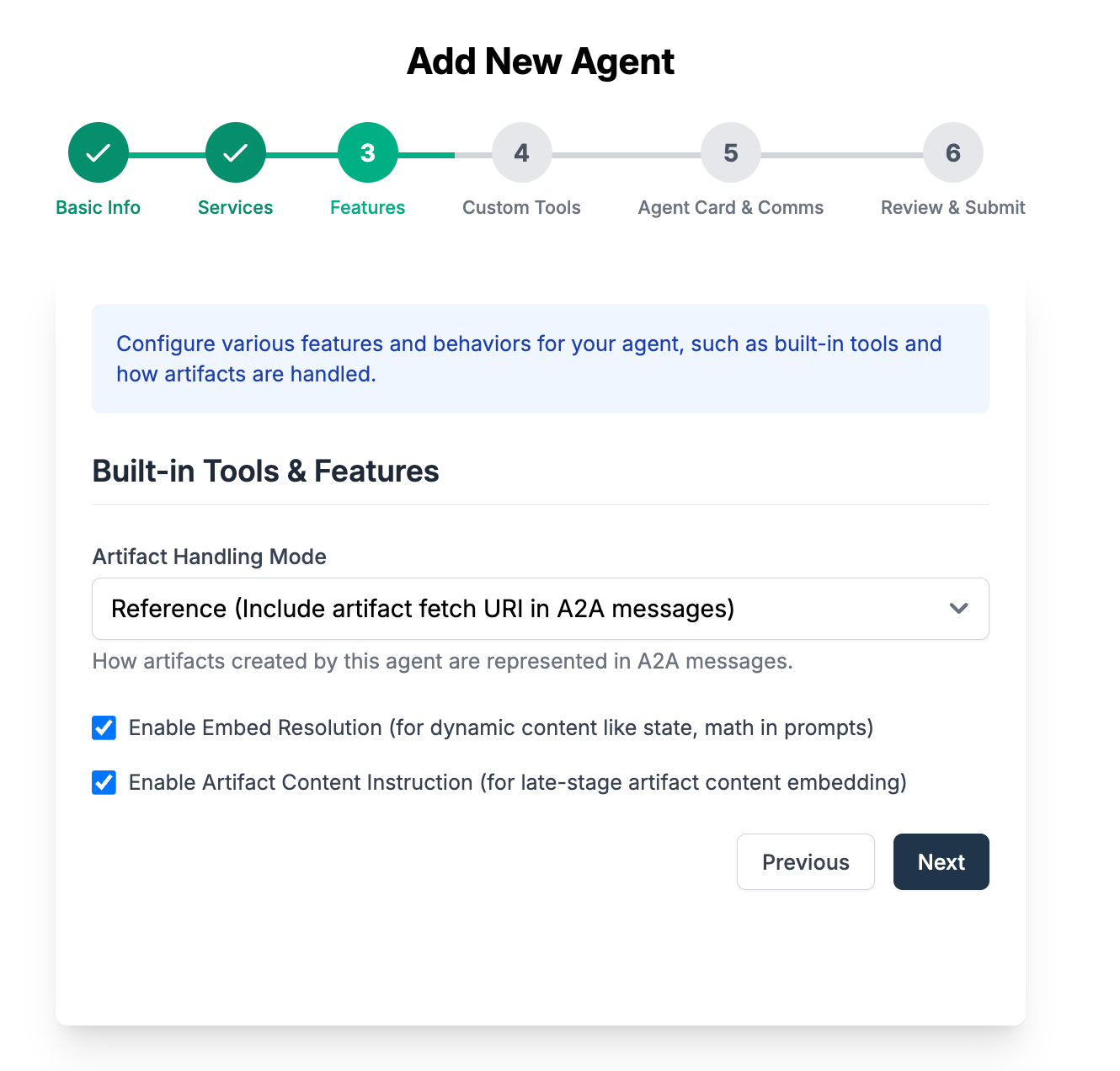

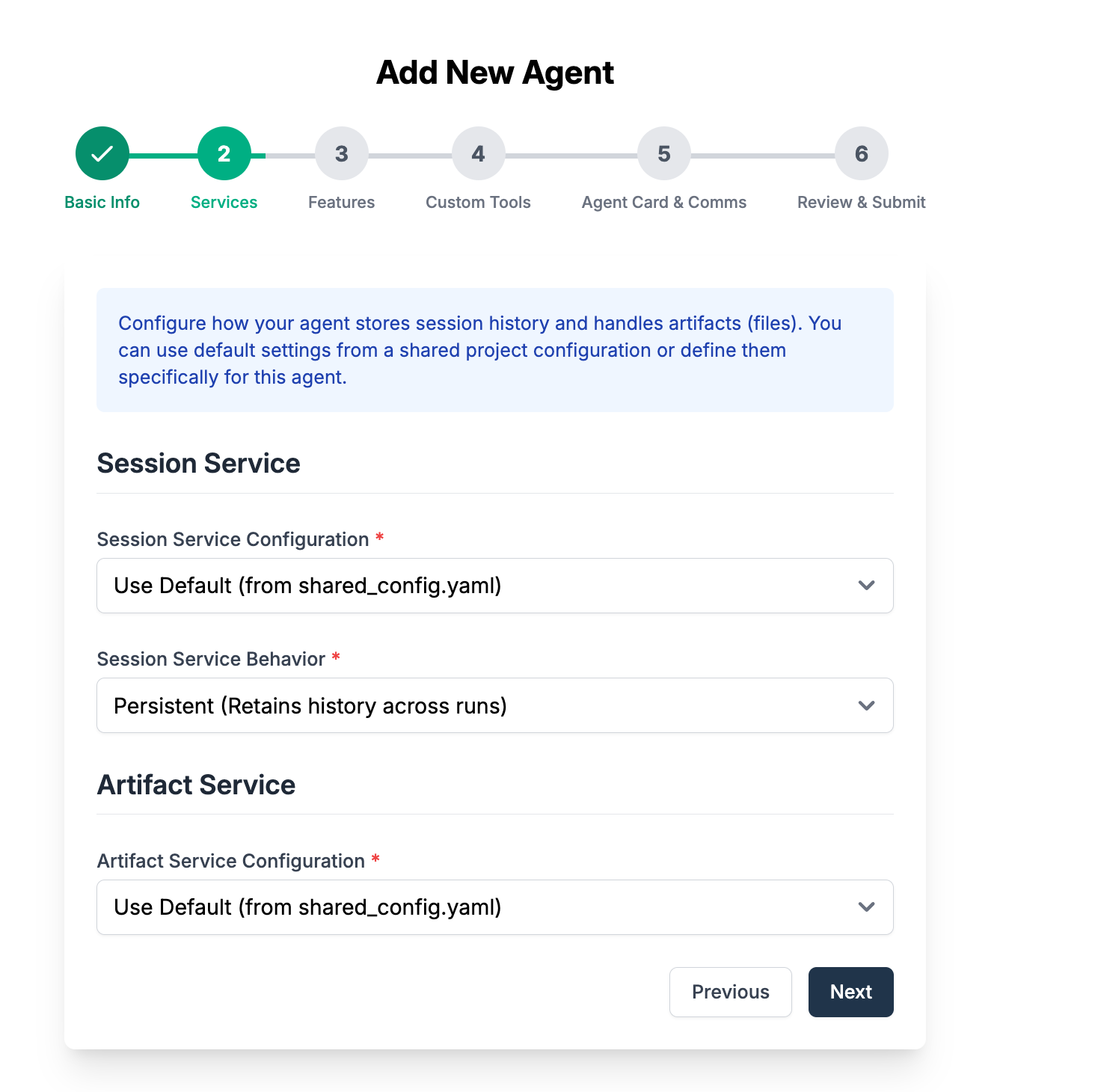

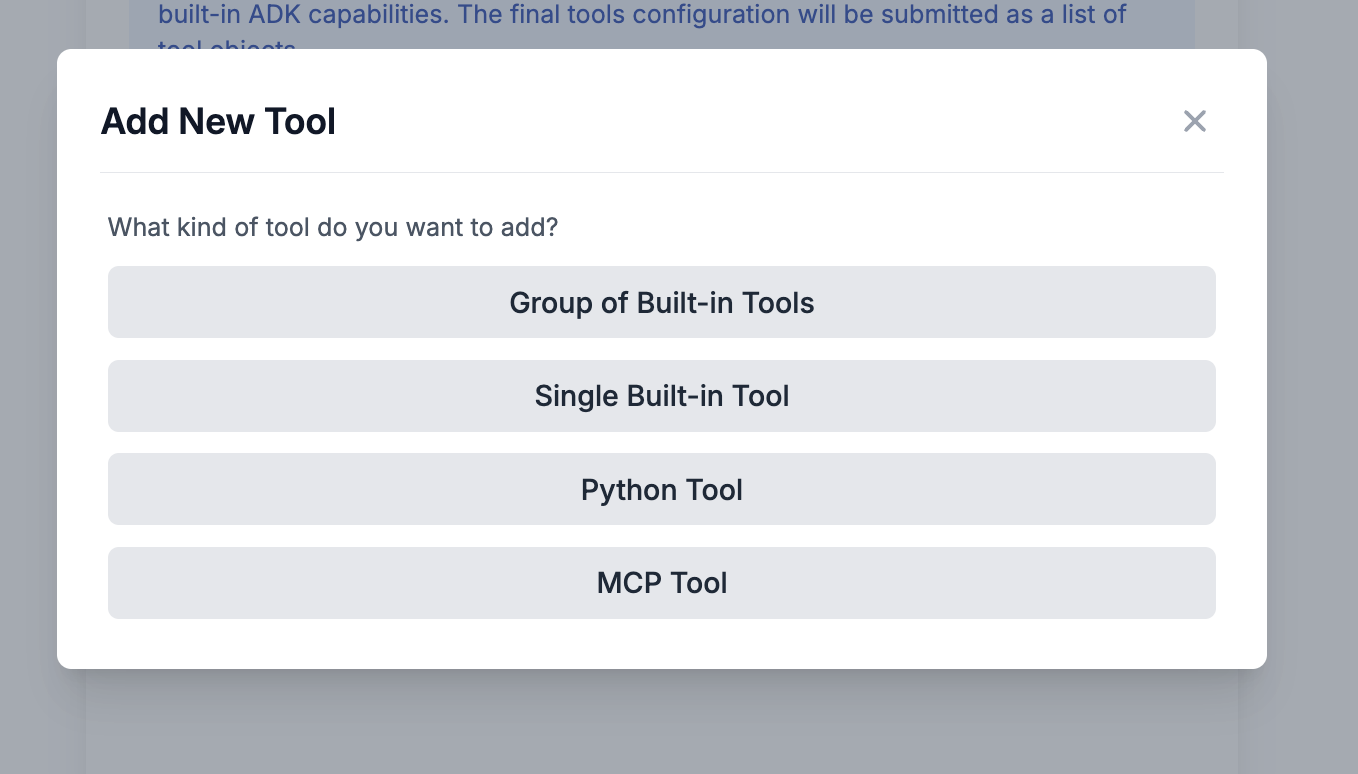

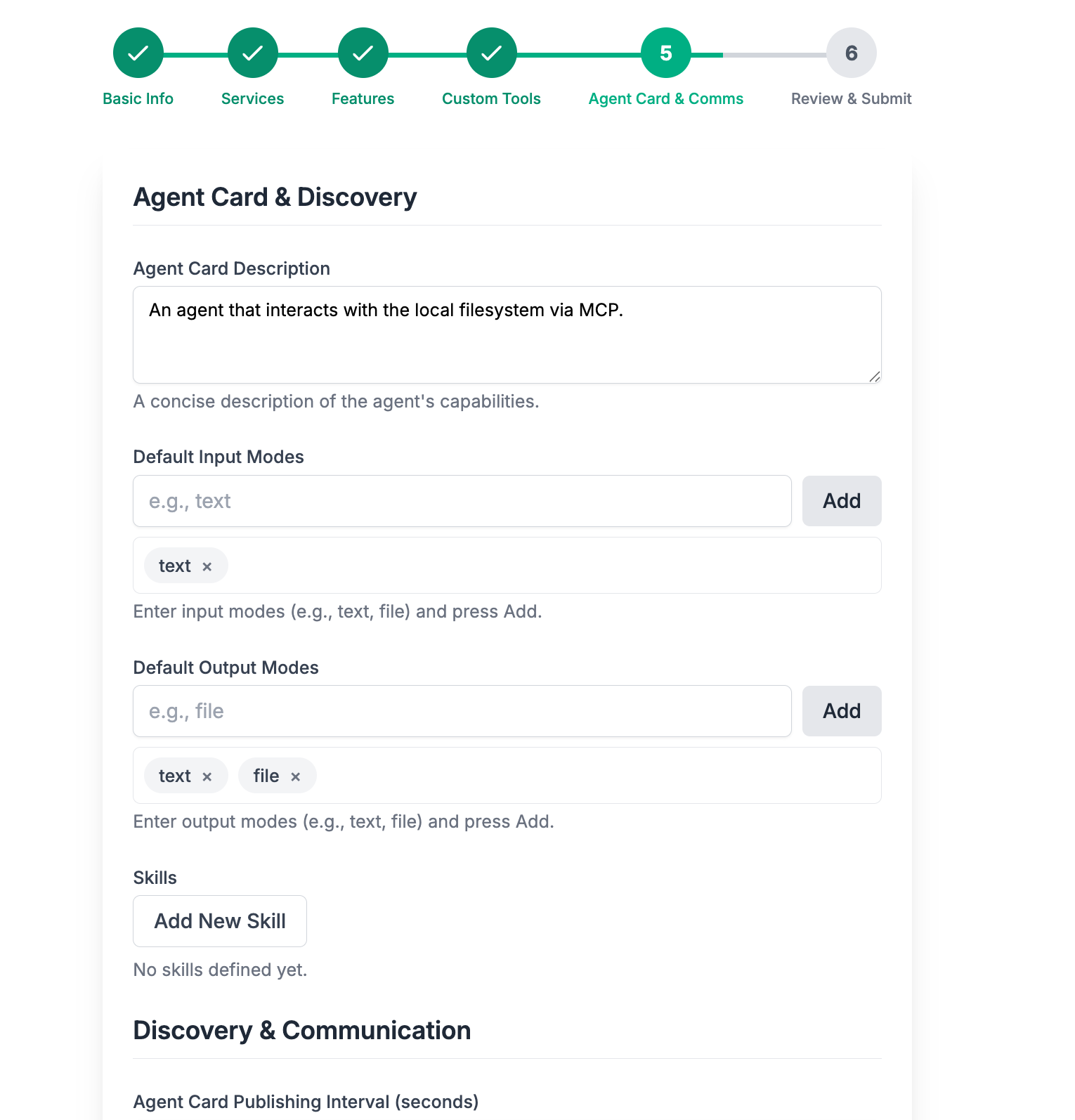

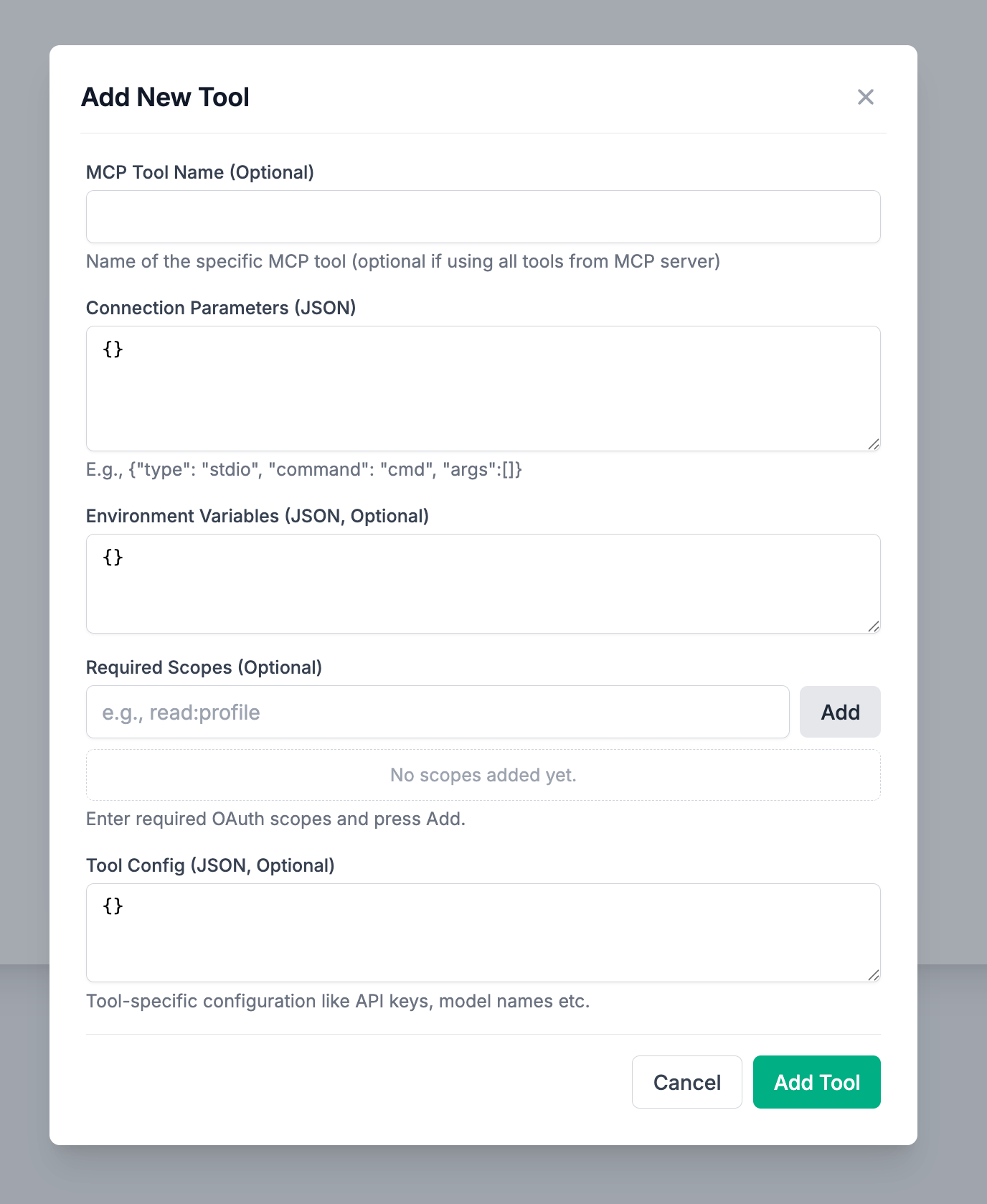

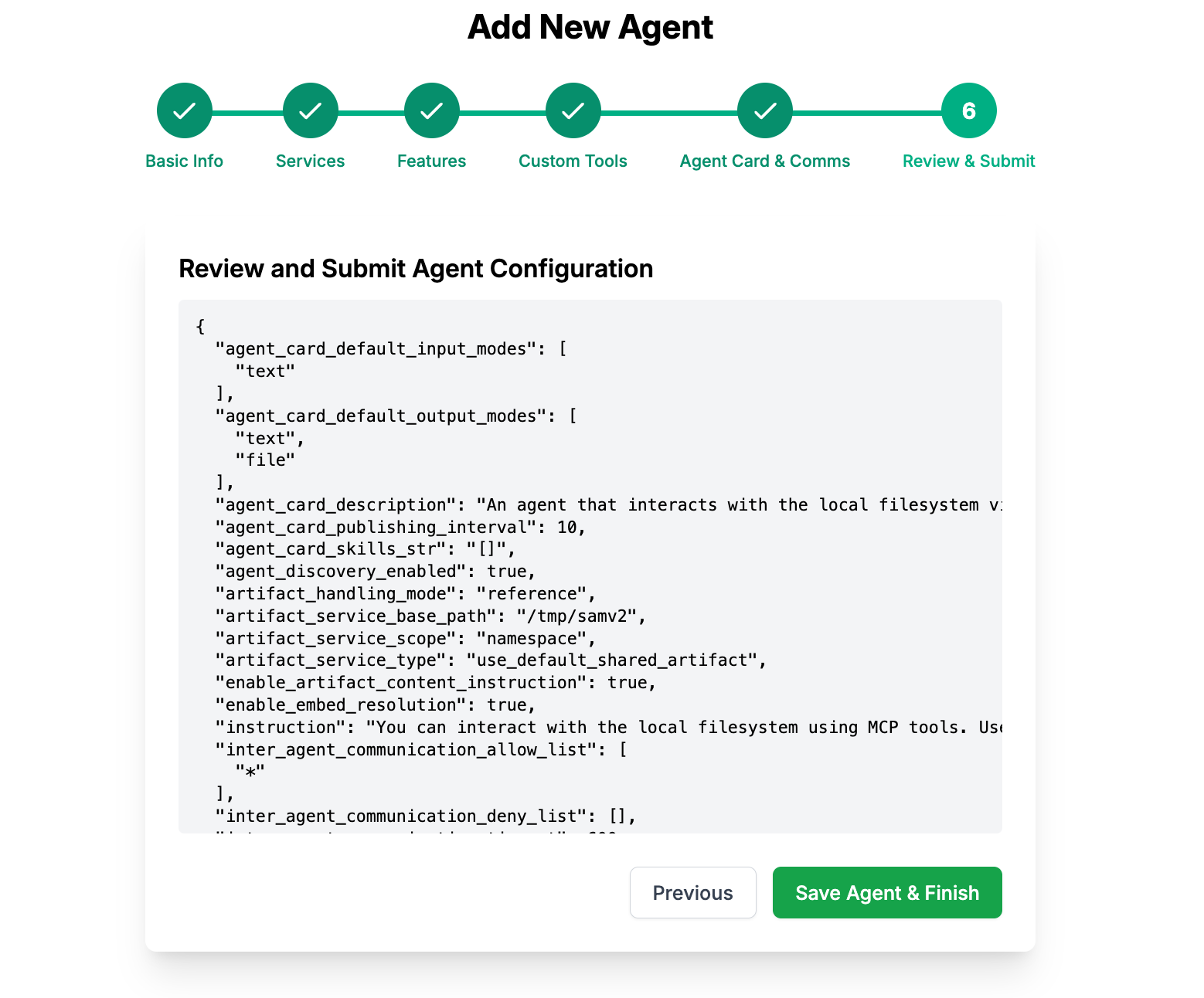

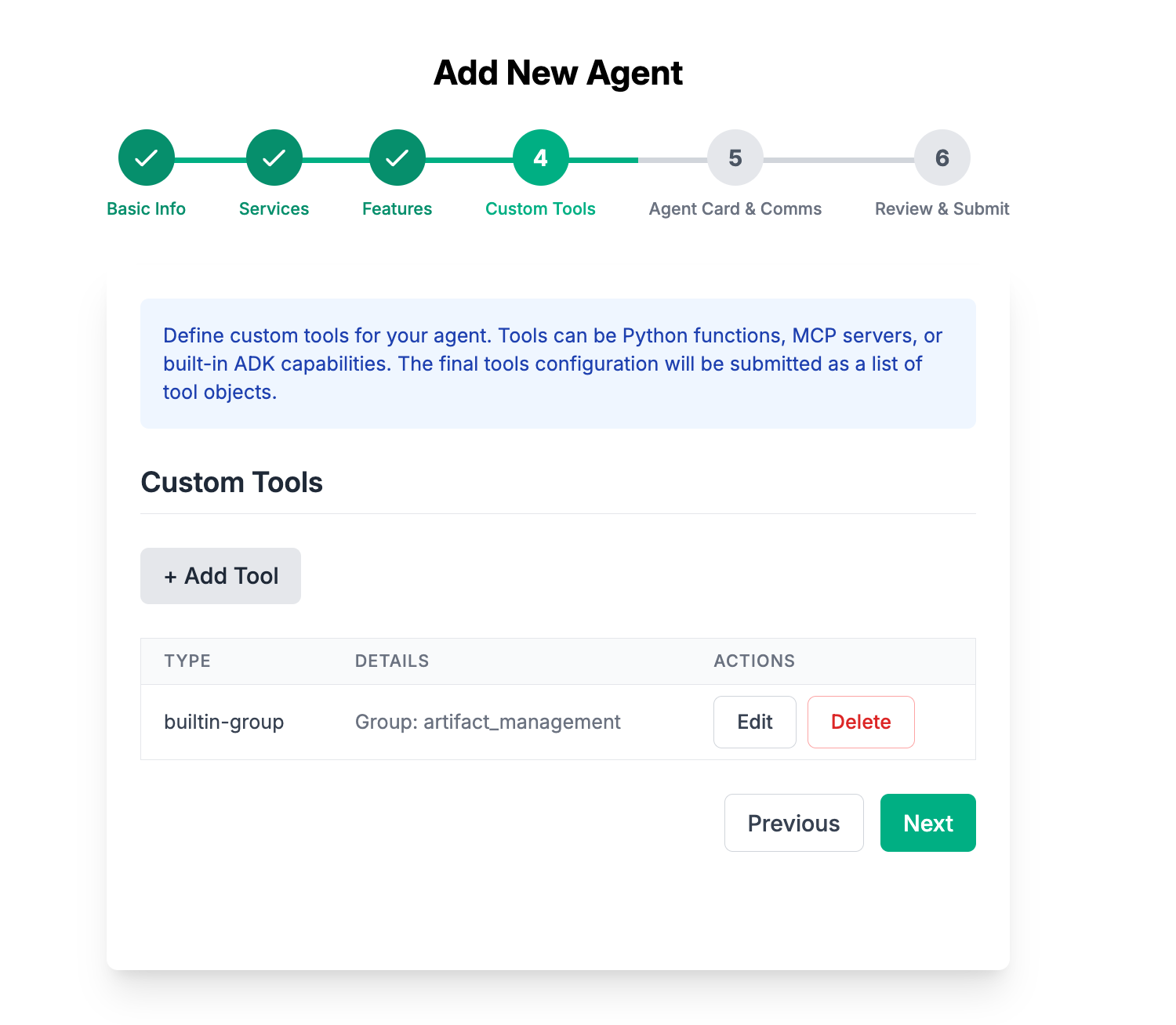

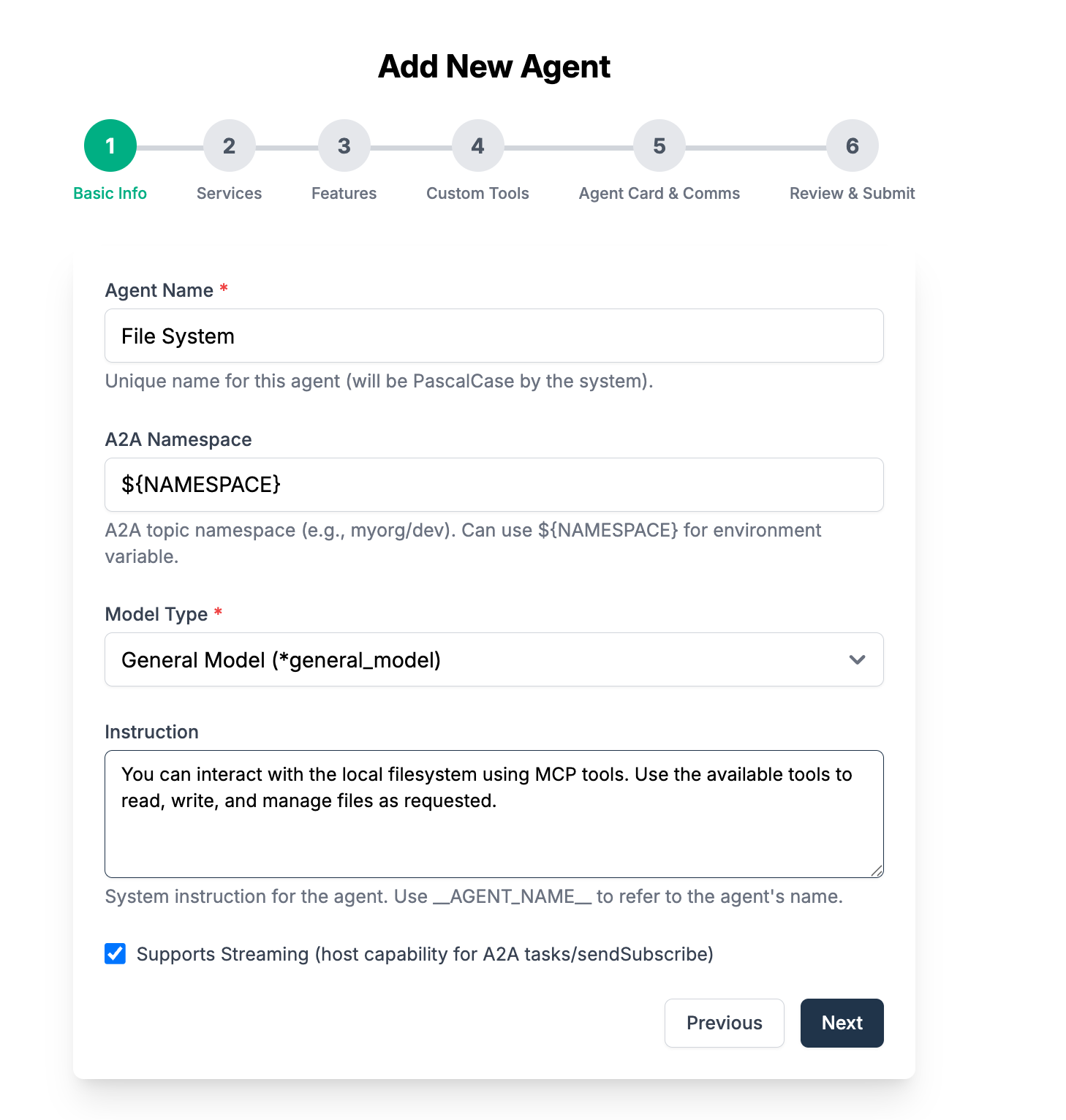

  3. Using the GUI interface sam add agent --gui
  4. custom using Python

Lets add a simple agent that converts any document to markdown leveraging the Solace Agent Mesh built-in tools.

  1. Stop your solace agent mesh instance if its already running
  2. Create a new file under configs/agents/ and name it markitdown.yaml
  3. Add the following content
log:
  stdout_log_level: INFO
  log_file_level: DEBUG # Changed from INFO to DEBUG to capture ADK INFO logs
  log_file: markitdown.log

# Shared SAM config
!include ../shared_config.yaml

apps:

# ---  Markitdown Agent ---
  - name: markitdown_agent_app
    app_base_path: .
    app_module: solace_agent_mesh.agent.sac.app
    broker:
      <<: *broker_connection

    # --- App Level Config ---
    app_config:
      namespace: ${NAMESPACE}
      supports_streaming: true
      agent_name: "MarkitdownAgent"
      display_name: "Markdown"
      model: *multimodal_model # Or *planning_model, choose as appropriate
      instruction: |
        The MarkitdownAgent has the following capability:
        * convert various file types (like PDF, DOCX, XLSX, HTML, CSV, PPTX, ZIP) to Markdown.
        Any files you get that might be useful should be saved using create_artifact.
        There is no need to provide a preview of the content in the response.

      # --- Tools Definition ---
      tools:
        - tool_type: builtin
          tool_name: "convert_file_to_markdown"
        - tool_type: builtin-group
          group_name: "artifact_management"

      session_service:
        type: "memory"
        default_behavior: "PERSISTENT" # Or "RUN_BASED"

      artifact_service:
        type: "filesystem"
        base_path: "/tmp/samv2"
        artifact_scope: namespace
      artifact_handling_mode: "reference"
      enable_embed_resolution: true
      enable_artifact_content_instruction: true

      # --- Agent Card Definition ---
      agent_card:
        description: "An agent that converts various file types (like PDF, DOCX, XLSX, HTML, CSV, PPTX, ZIP) to Markdown format."
        defaultInputModes: ["text", "file"] # Can take files as input
        defaultOutputModes: ["text", "file"] # Outputs markdown file
        skills:
        - id: "convert_file_to_markdown"
          name: "Markdown Converter"
          description: "Converts various file types to Markdown format."

      # --- Discovery & Communication ---
      agent_card_publishing: { interval_seconds: 10 }
      agent_discovery: { enabled: false }
      inter_agent_communication:
        allow_list: []
        request_timeout_seconds: 60
  1. Run solace agent mesh sam run

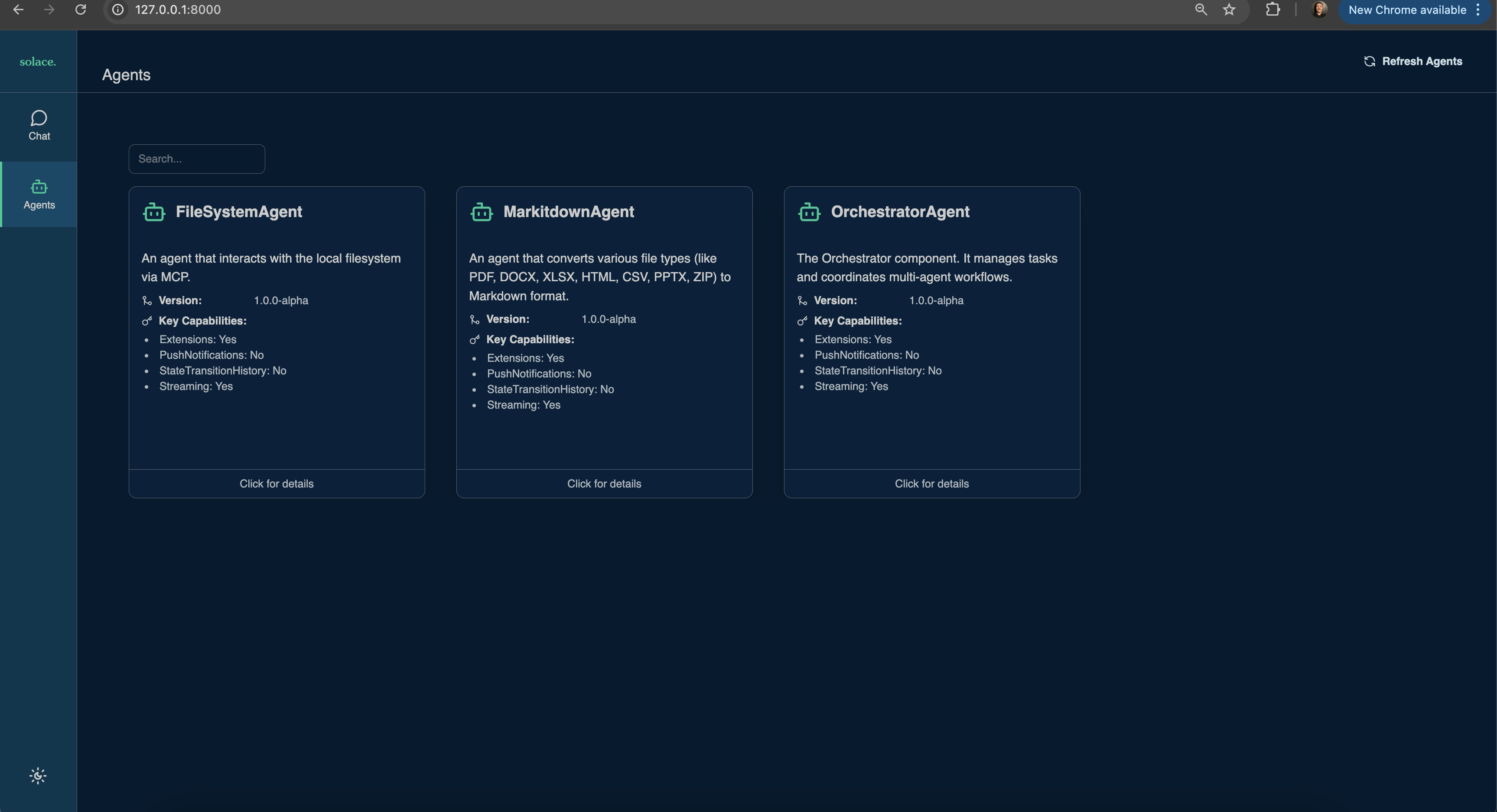

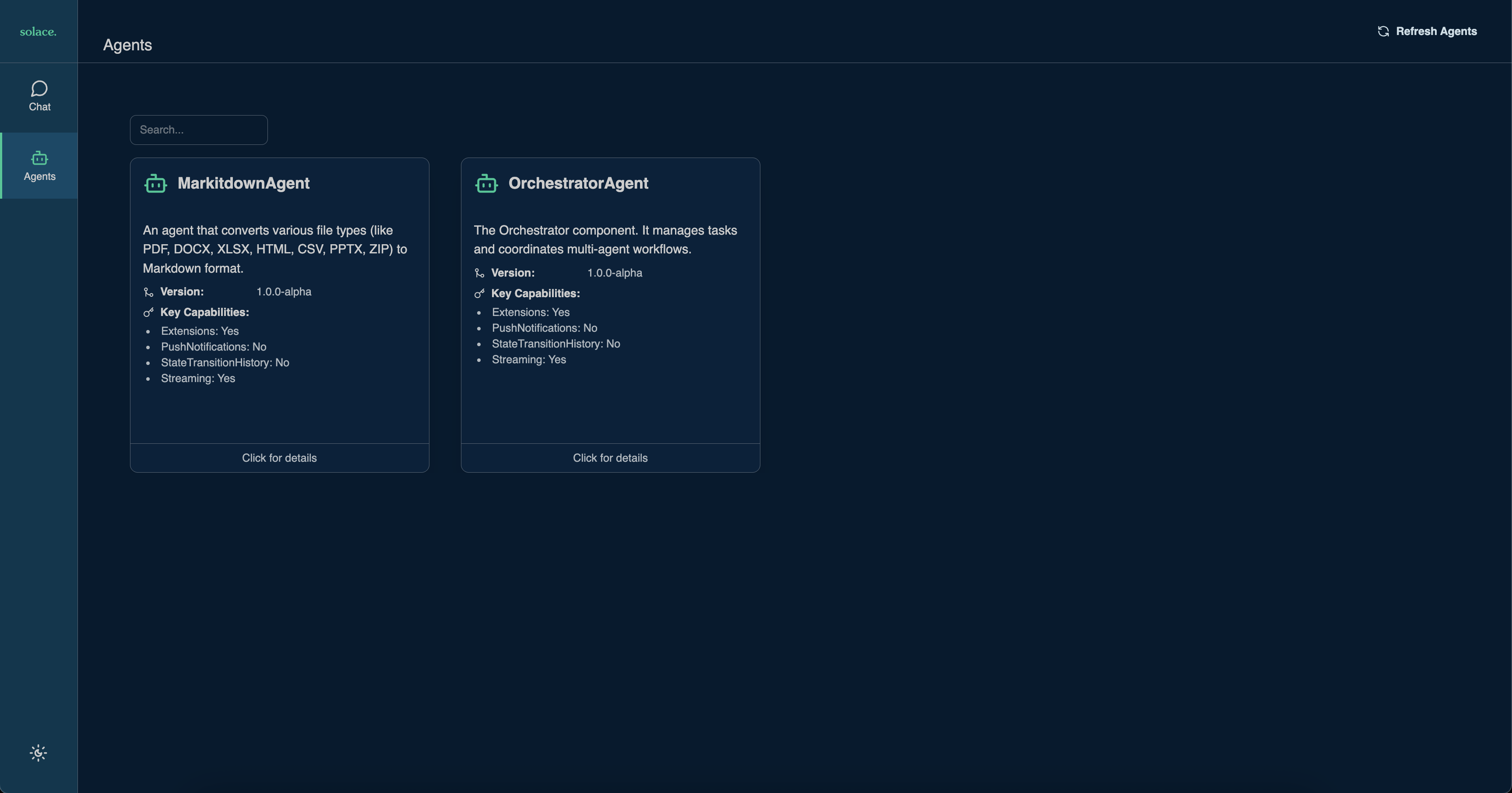

  1. Observe the agent in the WebGUI Gateway

markitdown

The Solace Agent Mesh framework is controlled by YAML configuration files that define agents, gateways, and plugins, allowing for configuration-driven development without code changes.

Agent configuration files in Solace Agent Mesh are stored in the configs/agents/ directory. Each agent has its own YAML file that defines its behavior, capabilities, and integration settings.

Key Components of Agent YAML Files

A typical agent configuration YAML file includes these key sections:

  1. Basic Agent Information
    • Name and description of the agent
    • Version information
    • Type of agent (e.g., assistant, orchestrator)
  2. Model Configuration (Note: Could be shared)
    • LLM provider and model selection
    • Temperature and other model parameters
    • System prompt/instructions for the agent
  3. Security and Authorization
    • Authentication methods (API key, OAuth2, etc.)
    • Role-based access control settings
    • Permission definitions
  4. Tools and Capabilities
    • Available tools and functions
    • Tool parameters and configurations
    • Built-in tool groups
  5. Integration Settings
    • Connections to external services (Jira, databases, etc.)
    • API endpoints and credentials
    • Connection parameters
  6. Event Handling
    • Event triggers and handlers
    • Timeout settings
    • Recovery mechanisms
  7. Agent Card Definition
    • Description of capabilities for other agents to discover
    • Input/output modes
    • Skills listing

Example Agent Configuration

Here's an example of a basic agent configuration YAML file:

log:
  stdout_log_level: INFO
  log_file_level: DEBUG # Changed from INFO to DEBUG to capture ADK INFO logs
  log_file: name-agent.log

# Shared config
!include ../shared_config.yaml

apps:
  - name: name-agent_app
    app_base_path: .
    app_module: solace_agent_mesh.agent.sac.app
    broker:
      <<: *broker_connection # References a broker connection defined in shared_config.yaml

  app_config:
    # Basic agent identity
    namespace: ${namespace}
    supports_streaming: true
    agent_name: "example-agent"
    display_name: "Example Agent"

    # LLM model configuration
    model: *general_model  # References a model defined in shared_config.yaml

    # Agent instructions (system prompt)
    instruction: |
      You are a helpful assistant specialized in answering questions about Solace Agent Mesh.
      Always provide accurate and concise information.

    # Tools configuration
    tools:
      - tool_type: python
        component_module: "example_agent.tools"
        component_base_path: .
        function_name: "search_documentation"
        tool_name: "search_docs"
        tool_config:
          search_depth: 3

      # Built-in artifact tools for file operations
      - tool_type: builtin-group
        group_name: "artifact_management"

    # Agent card definition (A2A specification)
    agent_card:
      description: "A helpful assistant for Solace Agent Mesh documentation"
      defaultInputModes: ["text"]
      defaultOutputModes: ["text"]
      skills:
        - id: "search_docs"
          name: "Search Documentation"
          description: "Searches through Solace Agent Mesh documentation"

Agent Cards in the A2A Specification

Agent Cards are a critical component of the Agent-to-Agent (A2A) protocol specification. They serve as the "identity" and capability declaration for agents in a distributed system.

What Are Agent Cards?

An Agent Card is a document (in JSON format) that describes an agent's:

Agent Cards enable agents to discover each other and understand how to interact appropriately. They are the foundation of the A2A (Agent-to-Agent) protocol that Solace Agent Mesh implements.

Agent Card Structure

In the Solace Agent Mesh YAML configuration, the agent card is defined within the agent_card section of the agent's configuration file. Internally, this is translated to a JSON document that follows the A2A specification.

The agent card includes:

  1. Basic Metadata
    • description: A human-readable description of the agent's purpose
    • defaultInputModes: Formats the agent accepts as input (e.g., "text", "image")
    • defaultOutputModes: Formats the agent produces as output
  2. Skills Section
    • Lists the specific capabilities or services the agent offers
    • Each skill has an ID, name, and description
    • Skills are discoverable by other agents for delegation and collaboration
  3. Authentication Information (optional)
    • Methods for authenticating with the agent
    • Required scopes or permissions
  4. Capabilities Declaration (optional)
    • Special features the agent supports (streaming, attachments, etc.)
    • Extension capabilities beyond core A2A functionality

Benefits of the YAML Configuration Approach

The YAML-based configuration approach in Solace Agent Mesh provides several key benefits:

  1. Configuration-driven: Precise control over agent behavior, service integrations, and security settings without code changes
  2. Security-first approach: Built-in authorization framework with fine-grained access control
  3. Resilient by nature: Event-driven design creates responsive, self-healing interactions
  4. Standardized discovery: A2A-compliant agent cards enable seamless agent integration and collaboration

This configuration approach is particularly valuable for building complex multi-agent systems where agents need to discover and collaborate with each other based on their respective capabilities and skills.

Built-in tools in the Solace Agent Mesh are a comprehensive set of capabilities that enable agents to perform complex tasks, interact with various systems, and collaborate effectively within the mesh ecosystem. These tools extends the native capabilities offered by the Agent Development Kit (ADK). This of these tool as native functionalities that agents have access to like "functions" instead of building these from scratch.

The Solace Agent Mesh comes with a series of built-in tools natively to the platform. Each built-in tool name is defined in the tools section of the application configuration for the agent in the yaml config file as follows

tools:
   - tool_type: builtin
     tool_name: "tool_name"

1. Artifact Management Tools

Artifact management tools handle the creation, storage, and retrieval of content and data objects across the agent ecosystem. They ensure artifacts such as documents, code, or structured data can be versioned, shared, and persistently stored while also supporting format conversion for interoperability. These tools make it easier for agents to generate and reuse artifacts seamlessly.

2. Data Analysis Tools

Data analysis tools allow agents to process, transform, and analyze data from a variety of sources. They support statistical analysis, natural language processing, and visualization generation, enabling agents to extract insights from both structured and unstructured data. With built-in query functions, these tools can also handle natural language queries against different data stores.

3. Web Tools

Web tools empower agents to interact directly with web-based resources and services. They support sending HTTP requests, retrieving and parsing content, and integrating with APIs while managing authentication methods like OAuth or API keys. In permitted cases, they also enable web scraping and structured response handling.

4. Peer Agent Delegation Tools

Peer agent delegation tools make collaboration among agents more efficient by supporting the distribution of tasks across specialized agents. They allow context to be shared, results to be aggregated, and coordination strategies to be applied, whether sequential, parallel, or conditional. These tools also enable agents to discover expertise and provide feedback to one another.

5. Developer Tools

Developer tools help streamline the development, deployment, and maintenance of the agent mesh. They include command-line utilities for management, debugging interfaces for real-time monitoring, and configuration management systems for precise control. Additionally, observability and testing frameworks provide insights into system health and validation of agent performance.

6. System Integration Tools

System integration tools connect agents with external backend systems and enterprise platforms. They provide connectors to databases, event streams, and message queues while also allowing controlled file system access. These tools extend the mesh's capabilities by integrating AI models and external enterprise applications into agent workflows.

Lets take an example for a web-request agent

- name: web_agent_app
    app_base_path: .
    app_module: solace_agent_mesh.agent.sac.app
    broker:
      <<: *broker_connection

    app_config:
      namespace: ${NAMESPACE}
      supports_streaming: true
      agent_name: "WebAgent"
      display_name: "Web Content"
      model: *planning_model # Or another appropriate model from shared_config.yaml
      instruction: |
        You are an agent that can fetch content from web URLs using the 'web_request' tool.
        You can make various types of HTTP requests (GET, POST, etc.) and include custom headers or a body.
        The tool will return the fetched content (HTML converted to Markdown, other text types as is, or raw binary data).
        You will then need to process this content based on the user's request.
        Always save useful fetched content as an artifact.

      tools:
        - tool_type: builtin
          tool_name: "web_request"
        - tool_type: builtin-group
          group_name: "artifact_management"

This yaml configuration of a Web Agent uses two types of tools: a built-in tool web_request that handles web requests and a group of built-in tools artifact_management that handles artifact access

Plugins serve as the backbone of the Solace Agent Mesh extensible architecture, providing a structured way to package, distribute, and incorporate new features into any SAM deployment. They are modular Python packages that extend the agent mesh's capabilities through specialized components that integrate seamlessly with the A2A protocol.

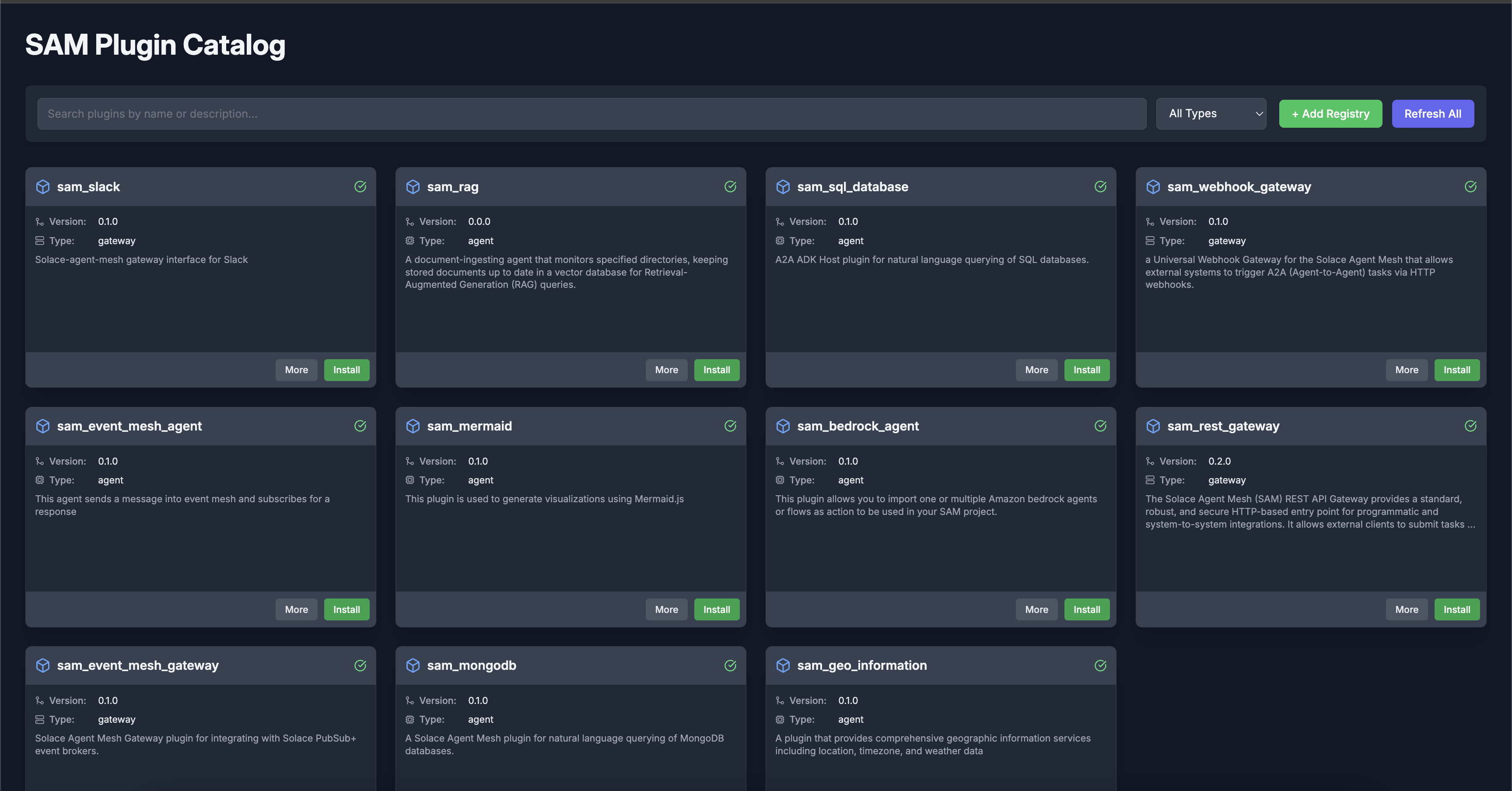

To spin up the list of the core plugins offered by the Solace Agent Mesh, execute the following

sam plugin catalog

simpleFlow

Types of plugins

Solace Agent Mesh supports three primary categories of plugins, each serving different purposes within the ecosystem:

Agent Plugins These contain specialized agents with domain-specific capabilities. They extend the system's ability to perform specific tasks or interact with particular data sources or services. For example, an agent plugin might specialize in processing financial data or analyzing medical imagery.

Gateway Plugins These provide new interface types for external system integration, enabling SAM to connect with various user interfaces, APIs, or communication channels. Gateway plugins might add support for channels like Slack, Microsoft Teams, or custom web interfaces.

Custom Plugins These implement specialized integrations that don't fit neatly into the agent or gateway categories. Examples include connectors for specific enterprise systems, data transformation services, or security extensions.

Where to get plugins?

The Solace Agent Mesh ecosystem encompasses both official and community-developed plugins:

Official Core Plugins

These are developed and maintained by the Solace team, providing essential capabilities for common use cases. The official plugins are available in the Solace repository at https://github.com/solacecommunity/solace-agent-mesh-plugins.

Community Plugins

Solace Agent Mesh plugins ecosystem also encourages community contributions through the plugin system. These plugins extend the platform in numerous ways and can be discovered through the same plugin catalog as official plugins. to learn more about the existing plugins, check the github repository https://github.com/solacecommunity/solace-agent-mesh-plugins

Adding custom plugins repository to the catalog

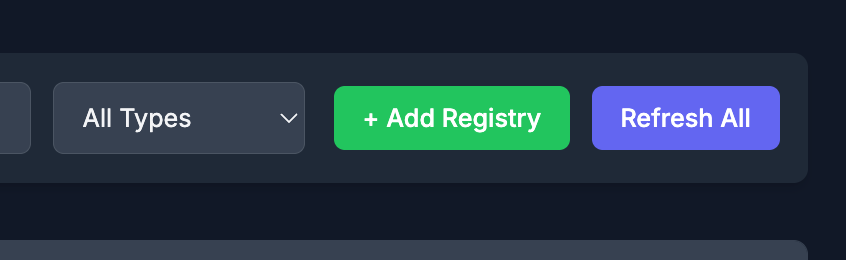

  1. Click on the Add Registry button

add_reg

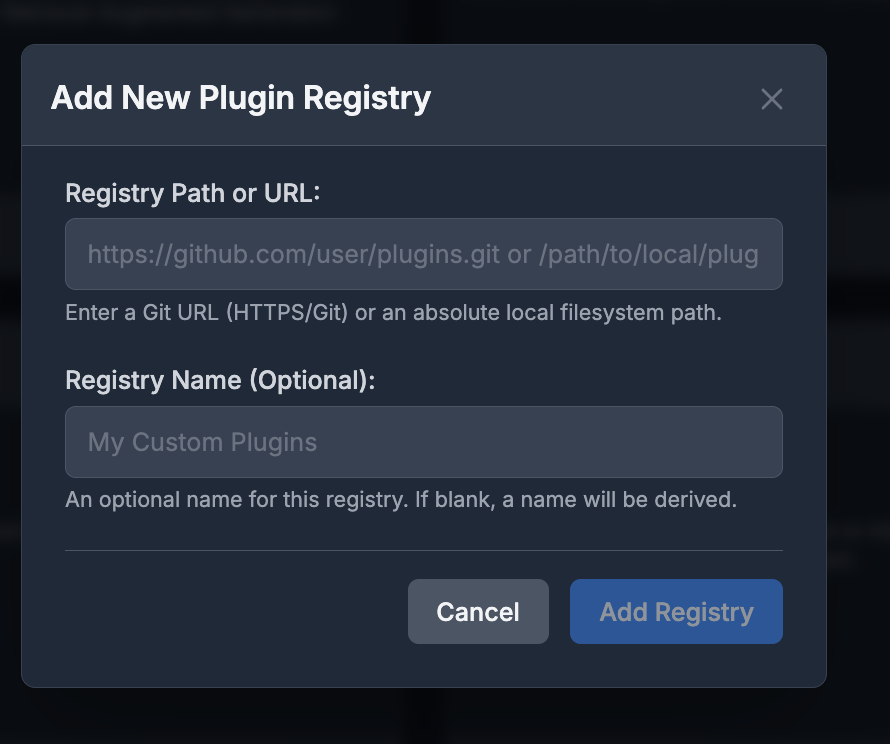

  1. Input the information in the dialog add_reg_dialog
    • Registry URL: https://github.com/solacecommunity/solace-agent-mesh-plugins
    • Registry Name: Community
  2. Install the plugin of choice

To learn more about plugins, the differences between plugins and agents, and how to create your first plugin check out the Solace Agent Mesh Plugins documentation

As mentioned earlier, the Solace Agent Mesh is an agent agnostic framework. Agents are YAML configuration driven and can be authored using

In this step, we are going to add an MCP agent using the graphical user interface.

From your terminal instance, execute this command from your terminal

sam add agent --gui

Let's go ahead and add an MCP agent that executes filesystem operations such as read/write, create files, get list of files, and searching directories. Learn more about this MCP agent from the Filesystem MCP Server found in the official list of open source MCP servers

Fill in the following information

SAM final

Select the service. Note you can leave everything default here service

Features is a list of A2A specific features that can extend the functionalities of your agent (in this example an MCP agent) to expose A2A features to it. Keep everything default here features

In this step, you will have to define the list of tools and skills this agent has. As mentioned in a previous step, tools could be built-in from the Solace Agent Mesh or you can specify a list of tools that are exposed from an MCP serve. customtools

Go ahead and click the Add Tool button addtool

You can see here there a list of different kind of tools to add. Go ahead and click on the MCP Tool

MCPTool

Under the Connection Parameters, add the following

{
  "type": "stdio",
  "command": "npx",
  "args": ["-y", "@modelcontextprotocol/server-filesystem", "/tmp/samv2"]
}

Click the Add Tool. Notice how this new agent now has two types of custom tools

  1. Artifact Management: This is a group of Solace Agent Mesh built-in tools that extends the capabilities of the custom agent
  2. MCP: All the tools that are defined in the MCP server exposed as custom tools for the agent

Click Next

You are then prompted with the Agent Card dialog. agentCard

Add the following Agent Card Description

An agent that interacts with the local filesystem via MCP.

Leave everything else as the default. Click Next.

agentReview

🎉 Click Save Agent & Finish and you're done! You now have a custom MCP Agent configured.

This process created a yaml configuration file under configs/agents/file_system_agent.yaml. I want to point to your attention to this section of the configuration

tools:
   - group_name: artifact_management
      tool_type: builtin-group
   - connection_params:
      args:
      - -y
      - '@modelcontextprotocol/server-filesystem'
      - /tmp/samv2
      command: npx
      timeout: 30
      type: stdio
      tool_type: mcp

You can see here that this agent has two types of tools: the built-in tools and an MCP configuration.

The full yaml configuration for the agent should look like this

# Solace Agent Mesh Agent Configuration

log:
  stdout_log_level: INFO
  log_file_level: DEBUG
  log_file: a2a_agent.log

!include ../shared_config.yaml

apps:
  - name: "FileSystem__app"
    app_base_path: .
    app_module: solace_agent_mesh.agent.sac.app
    broker:
      <<: *broker_connection

    app_config:
      namespace: "${NAMESPACE}"
      supports_streaming: true
      agent_name: "FileSystem"
      display_name: "File System Agent"
      model: *general_model

      instruction: |
        You can interact with the local filesystem using MCP tools. Use the available tools to read, write, and manage files as requested.

      tools:
        - group_name: artifact_management
          tool_type: builtin-group
        - connection_params:
            args:
            - -y
            - '@modelcontextprotocol/server-filesystem'
            - /tmp/samv2
            command: npx
            timeout: 30
            type: stdio
          tool_type: mcp

      session_service:
        type: "sql"
        default_behavior: "PERSISTENT"
        database_url: "${FILE_SYSTEM_DATABASE_URL}"
      artifact_service: *default_artifact_service

      artifact_handling_mode: "reference"
      enable_embed_resolution: true
      enable_artifact_content_instruction: true
      data_tools_config: *default_data_tools_config

      # Agent Card Definition
      agent_card:
        description: |
          An agent that interacts with the local filesystem via MCP.
        defaultInputModes: [text]
        defaultOutputModes: [text, file]
        skills: []

      # Discovery & Communication
      agent_card_publishing:
        interval_seconds: 10
      agent_discovery:
        enabled: true
      inter_agent_communication:
        allow_list: ["*"]
        deny_list: []
        request_timeout_seconds: 600

Now go ahead and run an instance of the solace agent mesh from your terminal in your root project directory

sam run

Navigate to the Agents tab and see the new agent in the list

fileagent

Now that you have hte File Agent up and running, you can run any of the following prompts to see it in action

"List the files in the directory"
"Create a simple text file with some content"
"Read the contents of test.txt"

To learn more about MCP integrations with the Solace Agent mesh, refer to the MCP Integration section in the documentation

Now that you have a foundational understanding of Solace Agent Mesh and have deployed your first agent ecosystem, here are some recommended next steps to continue your journey:

📚 Explore the Documentation

Visit the Solace Agent Mesh Documentation for comprehensive guides, API references, and advanced concepts. The documentation provides in-depth information on:

🤝 Join the Community

🚀 Enhance Your Deployment

🧩 Develop Custom Plugins

Consider creating your own plugins to extend the functionality of Solace Agent Mesh:

  1. Use the sam plugin create command to scaffold a new plugin
  2. Follow the plugin development guide in the documentation
  3. Share your plugin with the community through the Solace Community Plugins Repository

📰 Stay Updated

🏭 Production Deployment

As you move towards production use cases:

📺 Check out our youtube playlists!

Throughout this codelab, you've gained valuable insights into Solace Agent Mesh and its capabilities. Here are the key takeaways to remember:

Architectural Benefits

Development Advantages

Integration Capabilities

Business Value

Getting Support and Resources

Solace Agent Mesh represents a significant advancement in building enterprise-grade agentic systems that can collaborate effectively at scale. By combining the power of event-driven architecture with modern AI capabilities, it provides a robust foundation for building the next generation of intelligent applications.

As the ecosystem continues to evolve, stay connected with the community through the repositories and forums to leverage the collective knowledge and contribute to this growing platform.

Thanks for participating in this codelab! Let us know what you thought in the Solace Community Forum! If you found any issues along the way we'd appreciate it if you'd raise them by clicking the Report a mistake button at the bottom left of this codelab.
